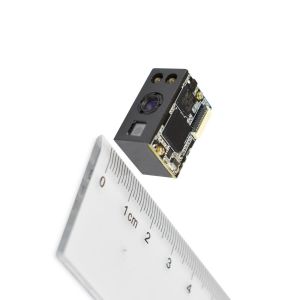

ECC200 ECC000 650nm Laser Barcode Scanner Module For Arduino
Description of Mini 2D Scan Engine
Rakinda LV30 2D OEM Laser Aiming Embedded Barcode Scan Engine for Handheld PDA Tablet,POS,Vending Machine,Turnstile,Kiosk,Self-service Equipment.High Quality Factory Direct Sales 2D Barcode Scanner Module with 3 mil Resolution,high performance, high reliability, low power Consumption,USB and RS232 interfaces are more convenient.
2D OEM Laser Barcode Scan Engine Features
1. LV30 bar code reading engine, the application of the world's leading chip smart new continent image recognition technology to create a new era of image-based two-dimensional bar code reading engine.
2. Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easyfor integration.LV30 is seamless upgrade for Motorola SE955 due to theirsame size and bottom screw hole. Thus,if you want to upgrade your solution from 1D to 2D, there is no need to change mould.
3. The LV30 OEM scan engine armed with the Rakinda core technology, a computerized image recognition system brings about a new era of 2D barcode scan engines.
Product Parameters of 2D Barcode Scanner Module
| Interface | TTL-232, USB (optional) |
| Image Sensor | 752×480 CMOS |
| Symbologies | 2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
| Illumination | Red LED 612nm-624nm, 650nm laser |
| Resolution | > 3mil |
| Ambient Light | 0 ~ 100,000 LUX |
| Power Consumption | 0.76 W |
| Operating Voltage | 3.3±10% VDC |
| Current @ 3.3 VDC | Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA |
| Dimensions | 21.3(W)×11.6(D)×15.5(H)mm |
| Weight | 5.0g |
| Operating Temperature | -20℃~ +60℃ |
LV30 Datasheet En.pdf
QR Code Scanner Module Configuring Way:
Rakinda can supply user guide and intergration guide of barcode scanner to help you embed it into device.Configuring scanner by scanning setting code in user guide.
Application of QR Code Module
Mini barcode scanner module use for kiosk or PDA scanner engine for data collector,self-service cabinets used in e-commerce, smart home storage cabinet, ATM, self-service inquiry terminal, self-service queuing machine. Easy to use.
Mini Barcode Scanner FAQ
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: How can I buy?
A2: Pls contact us first according to the contact info. We will send you proper link directly.
Q3: What is your payment method?
A3: We accept PayPal ,T /T, LC, Western Union , MoneyGram.
Q4: How long is your warranty time?
A4: Our officially promised warranty time is two years after delivery.
